9,000 Lbs 2-Post Lift – Floor Plate Asymmetric Arms

$2,195.00

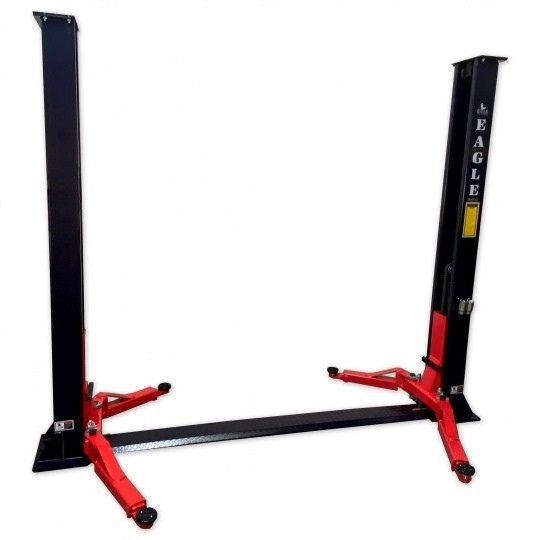

Eagle Equipment’s EAG-9F is a two-post, floor-plate lift with 9,000 lbs. capacity. This is the perfect lift for lifting cars and light trucks and SUVs.

Because the front arms are shorter than the rear arms, the vehicle is loaded asymmetrically, making it easier to get in and out of the vehicle.

Safety Features:

  • Dead Man’s Type Control: The operator is required to hold the controls in the engaged position to raise or lower the lift.
  • Equalizing System: Equalizing cables to ensure level movement of both carriages.
  • Collision Prevention Switch: Electric-operated limit switch prevents collisions between the vehicle roof and ceiling.
  • Automatic Arm Restraint: Arm restraints are locked automatically to avoid any swivel under load.
  • Pipe Break Valve: Hydraulic cylinders are equipped with pipe break valves to prevent sudden lowering movements.
  • Pressure Relief Valve: Pressure relief valve is used to limit the hydraulic working pressure to a maximum of 2175 PSI. Eagle Equipment’s EAG-9F is a two-post, clear-floor lift with 9,000 lbs. capacity. This is the perfect lift for lifting cars and light trucks and SUVs.
  • Download User Manual
SKU: EAG-9F Categories: ,
Specifications & Optional Features

Style
Asymmetric

Lifting Capacity
9,000 lbs.

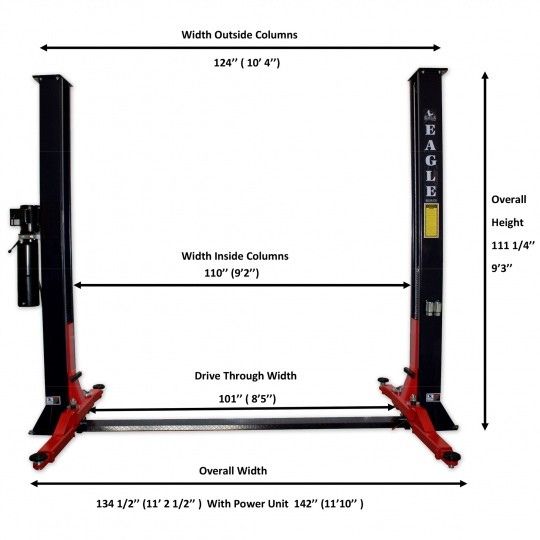

Overall Height
111.5"

Overall Width (outside of base plate)
134.250"

Width (outside of columns)
124.75"

Inside Columns
110"

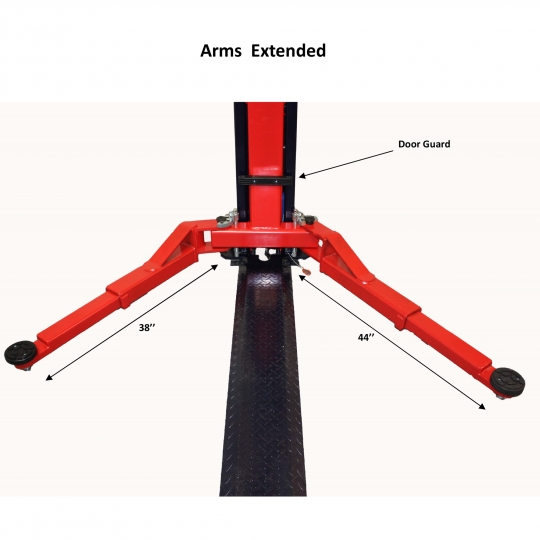

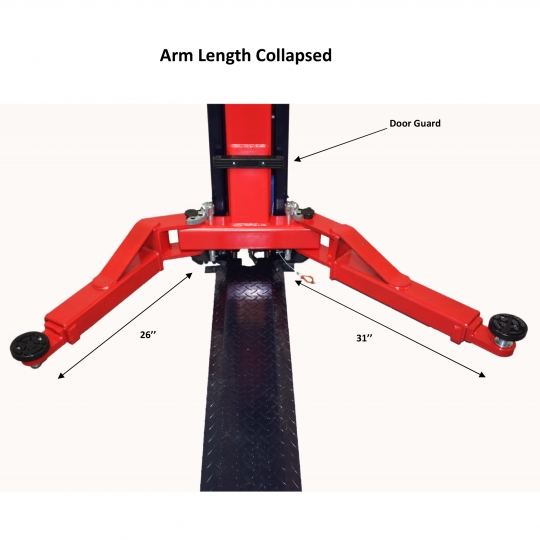

Front Arm Min Reach
31.5"

Front Arm Max Reach
44.75"

Rear Arm Min Reach
31.5"

Rear Arm Max Reach
44.75"

Min Pad Height
4"

Height Adapters
1.75" - 4"

Rise
69.5"

Lift Height Max (pad only)
72.8"

Lift Height Max (with adapters)
80.75"

Drive-Through Clearance
101"

Time to Full Rise (No Load)
60 Seconds

Anchoring
.75"

Concrete Grade Min.
4" of 3,000psi or Greater

Motor Power
2HP (1.5KW)

Power Supply
220V/380V,50Hz/60Hz

Shipping Weight
1,290 lbs. (with Power Unit)

Shipping Dimensions
114"L x 22"W x 42"H (with Power Unit)
