10,000 Lbs 2-Post Lift – Versatile Arms

$3,695.00

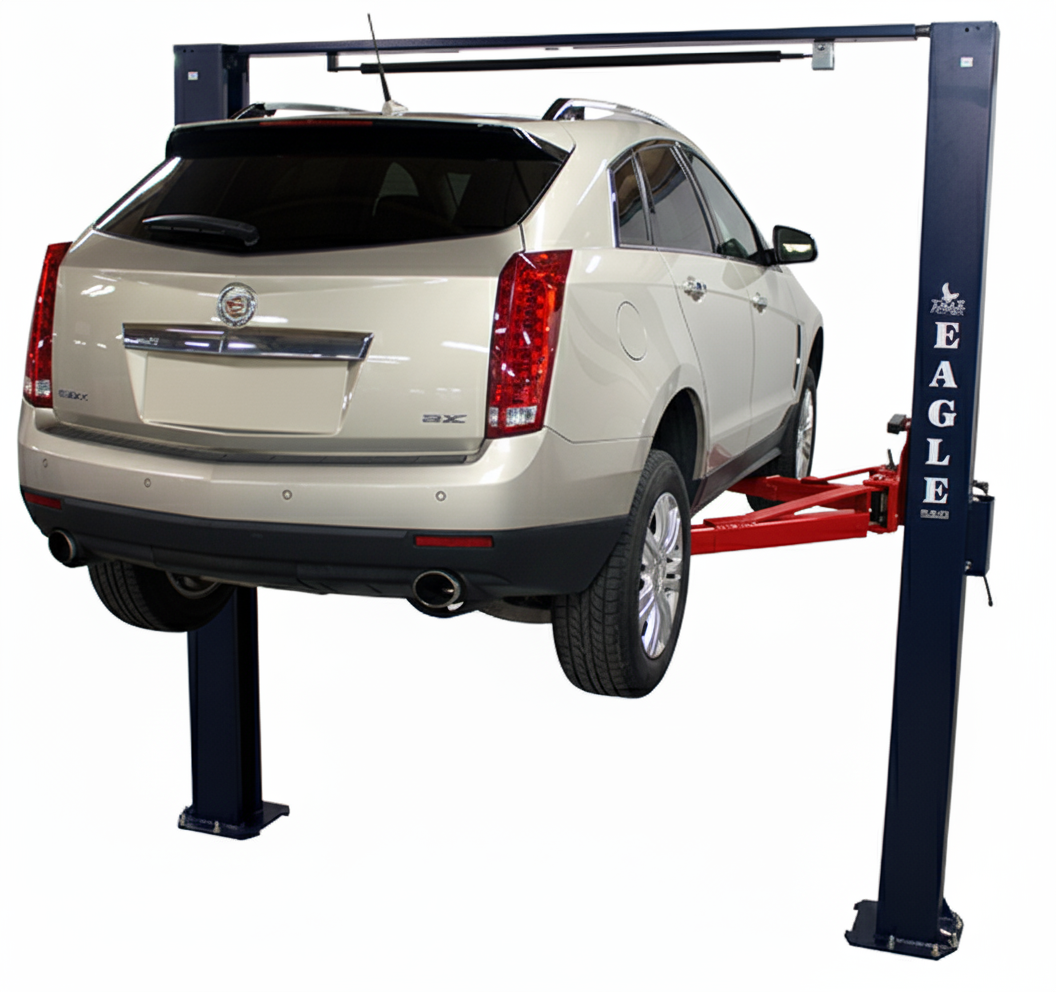

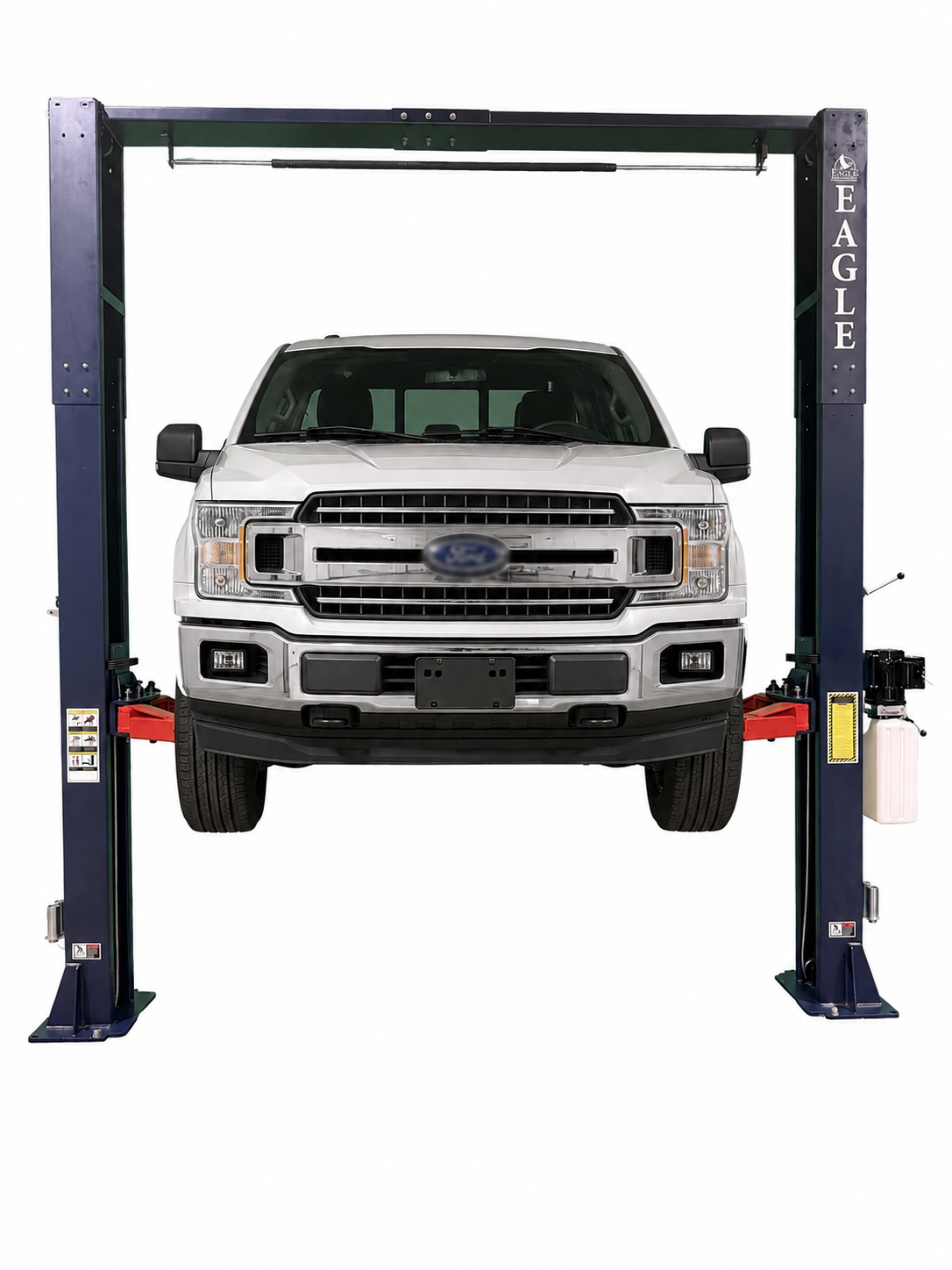

The ECL-10A from Eagle is a general service lift. This lift works well for small cars up to large SUVs and trucks (up to 3/4 ton). It will easily handle the rigorous demands of a full service facility.

  • Each arm capacity: 2500 lbs.
  • Durable power unit
  • Door guards
  • Outer hose guards

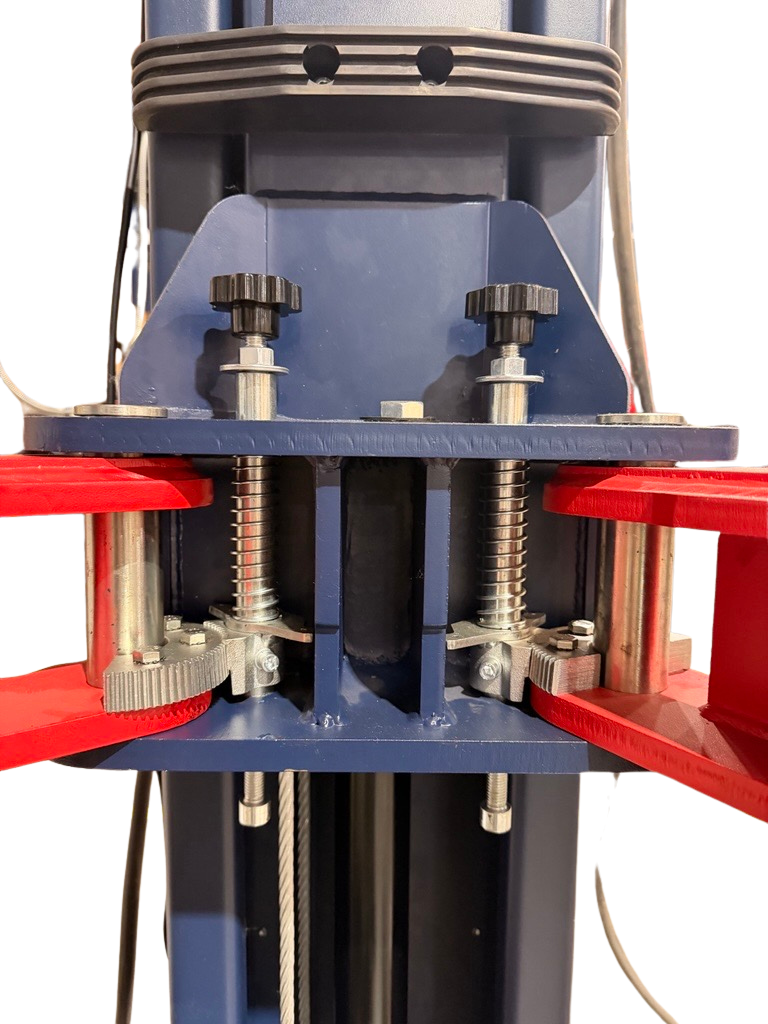

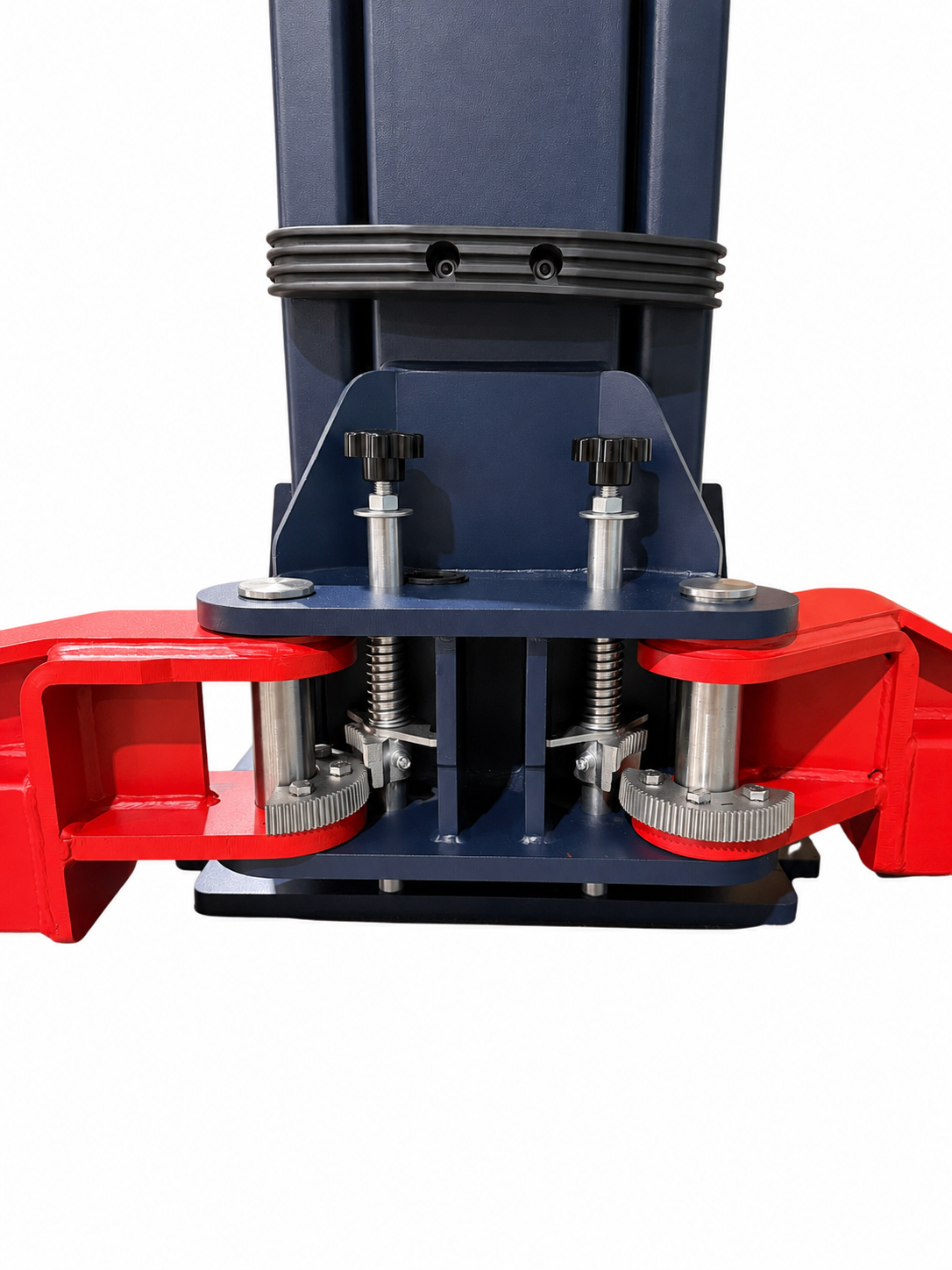

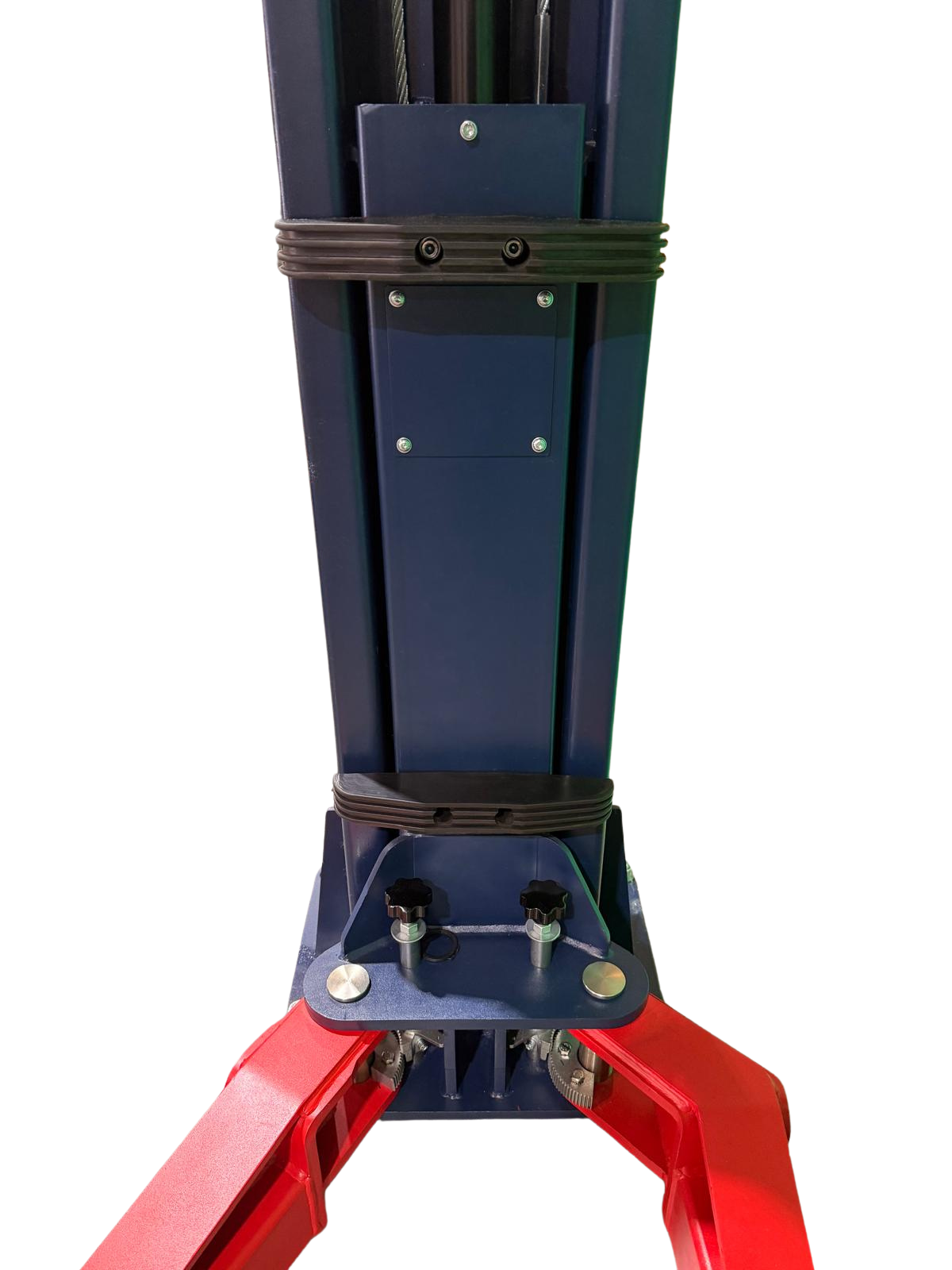

  • Heavy-duty arm restraint system.
  • Oversized rugged steel gears, pins and springs.
  • Single-point lock release, disengage both columns simultaneously

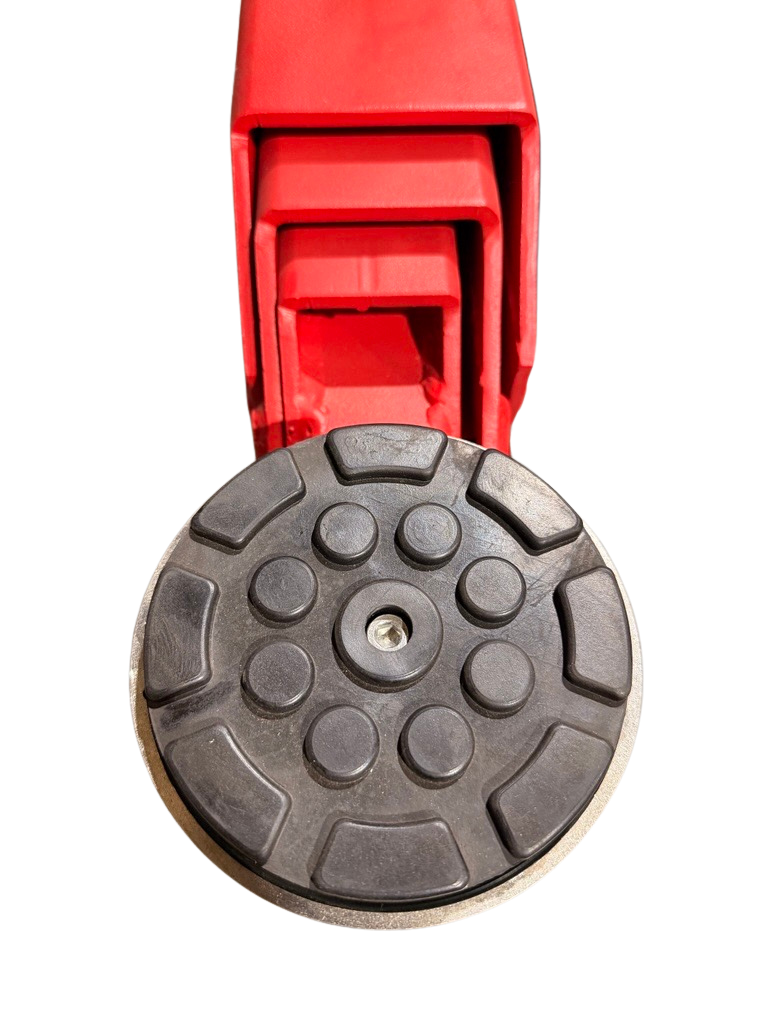

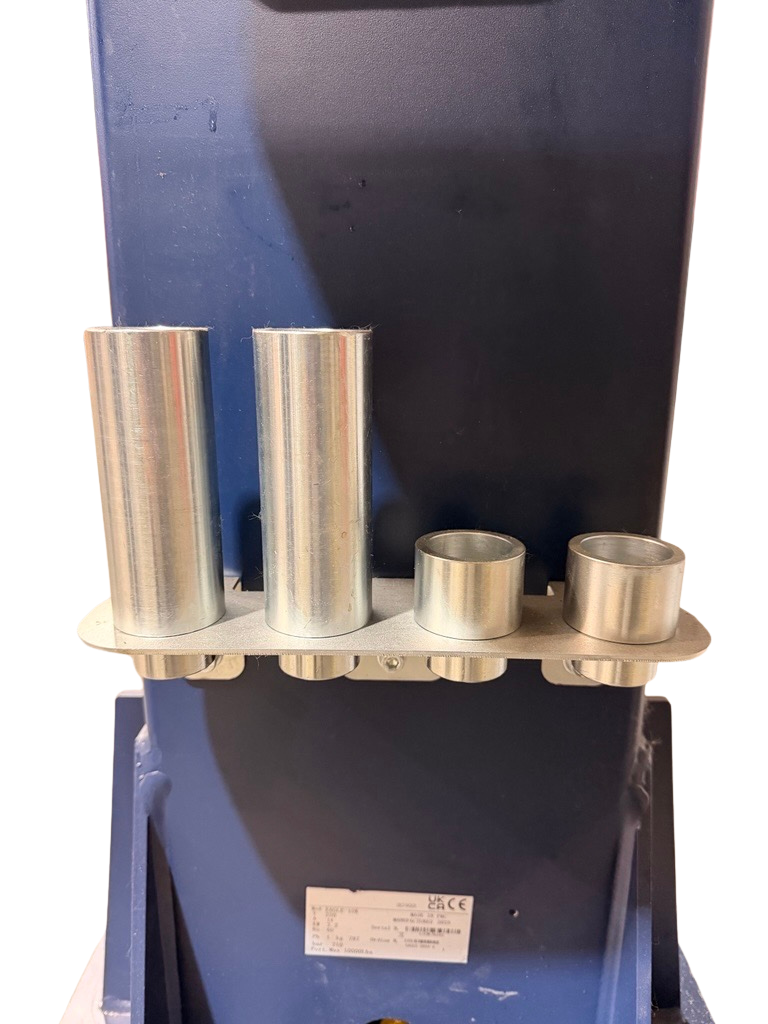

  • Height-adaptors included: 2.5″ & 6.5″
  • Download User Manual
SKU: ECL-10A Categories: ,
Specifications & Optional Features

Style
Asymmetric

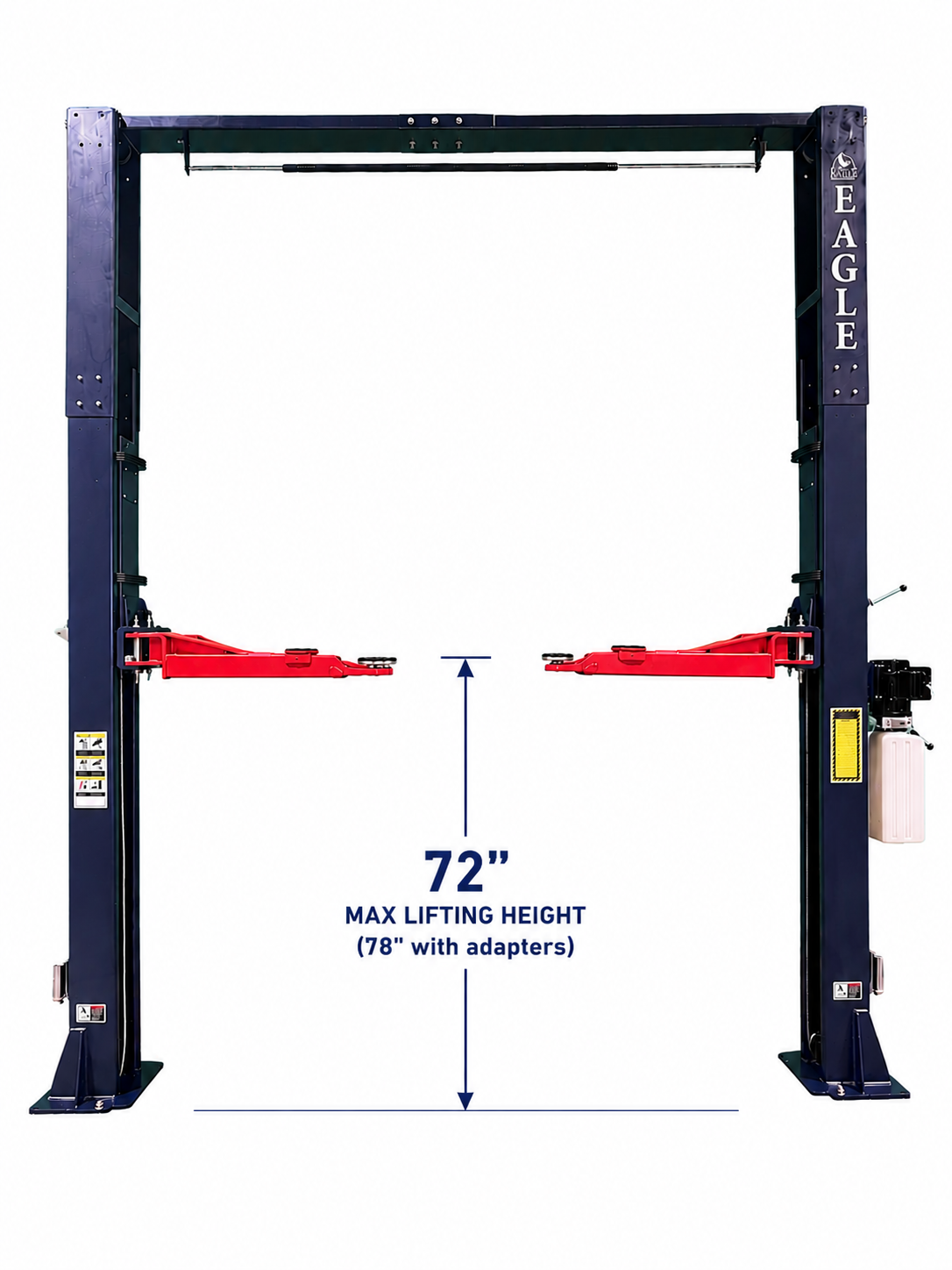

Max Lifting Height
72" - 79" with Extensions

Cylinder Full Height
145.2"

Total Width
145"

Drive-Through Clearance
98.4"

Floor to Overhead Switch
140"

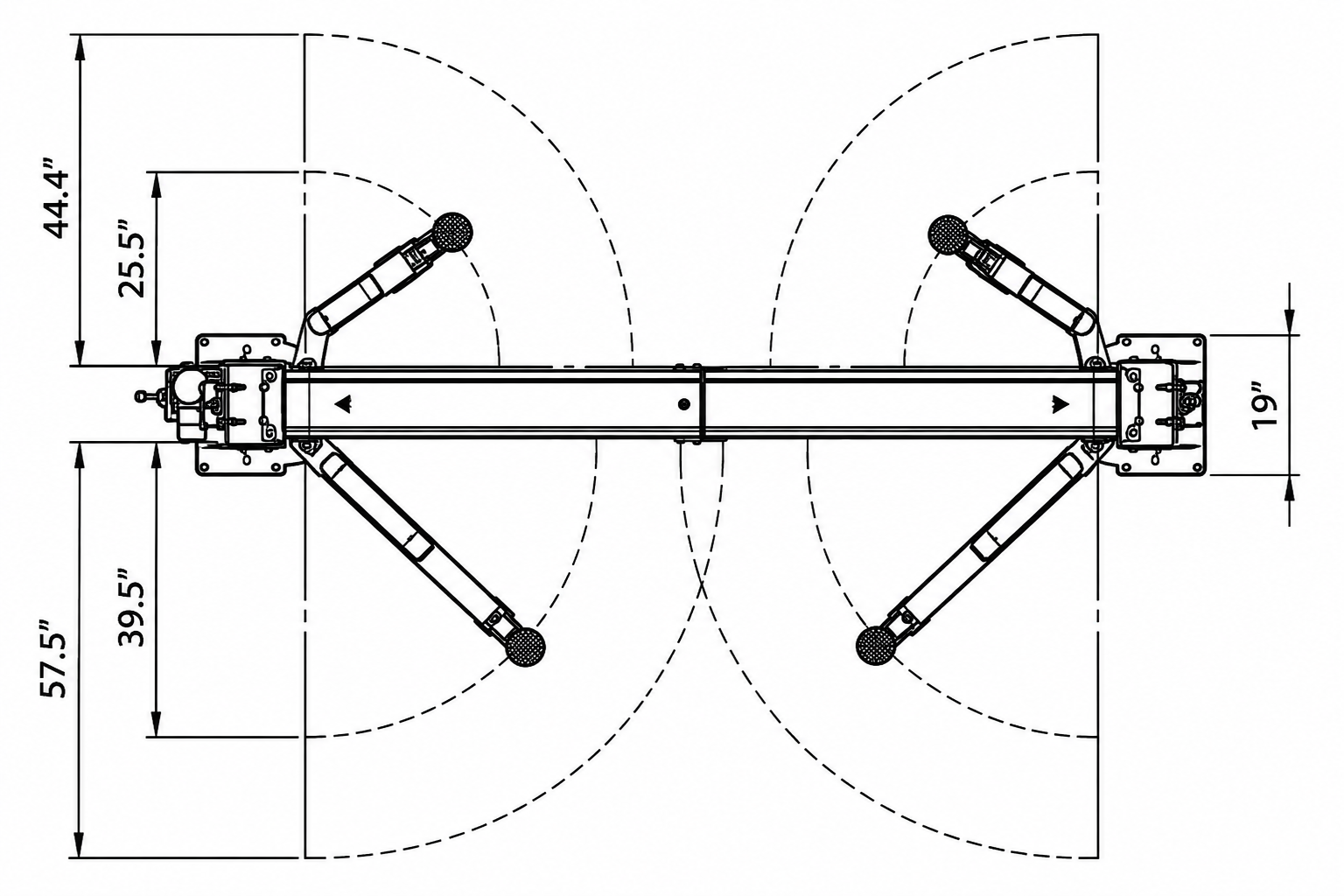

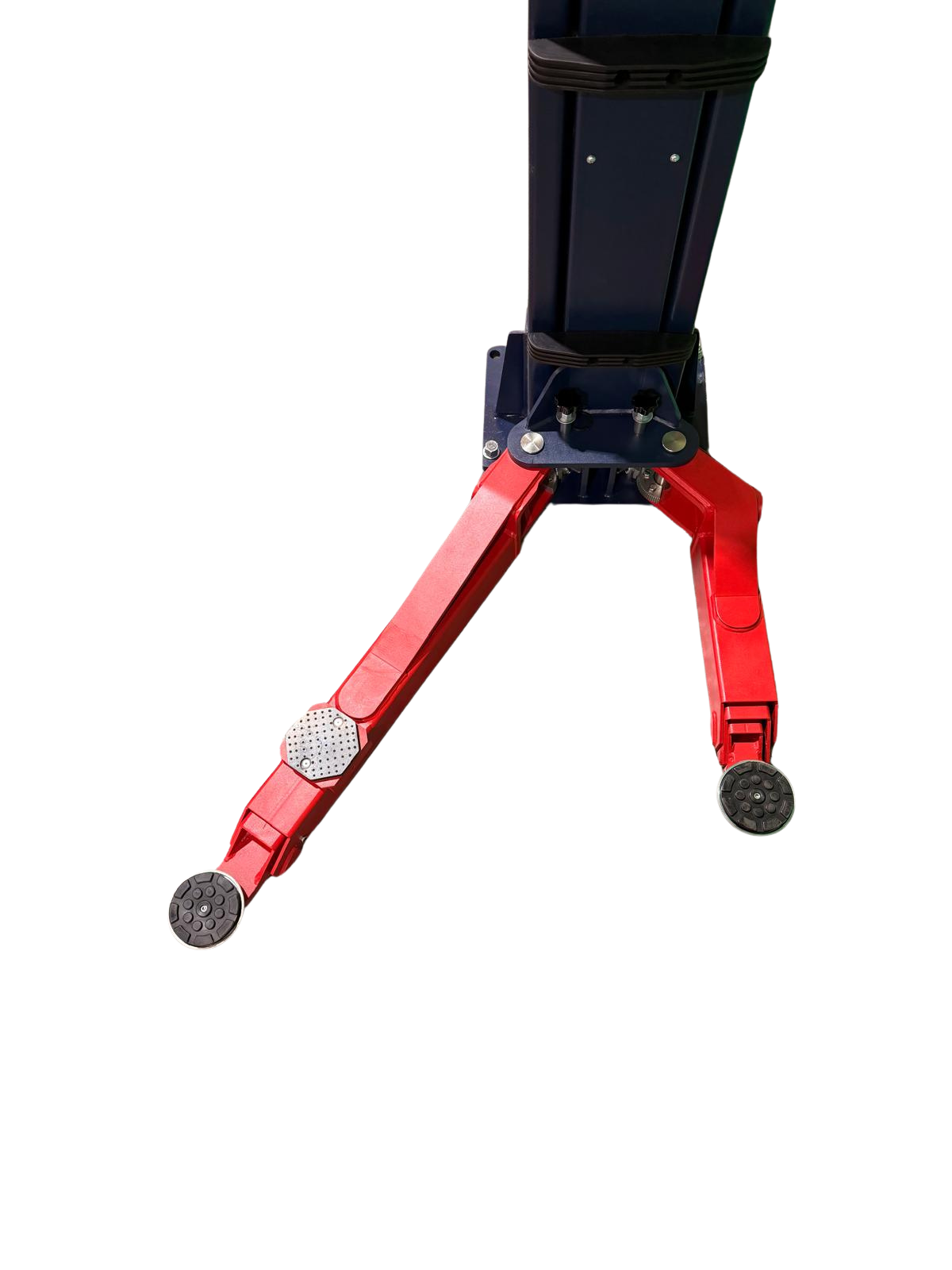

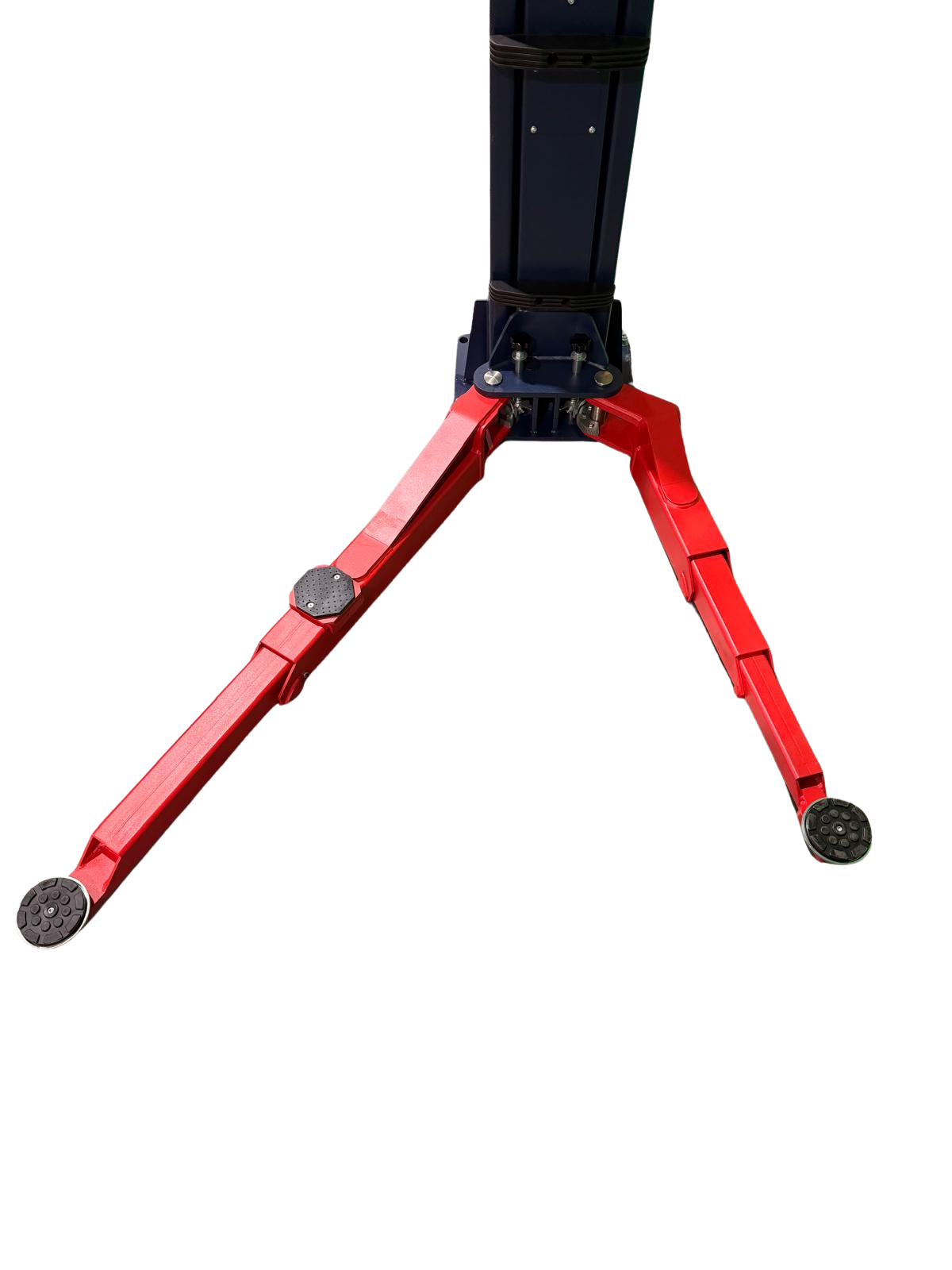

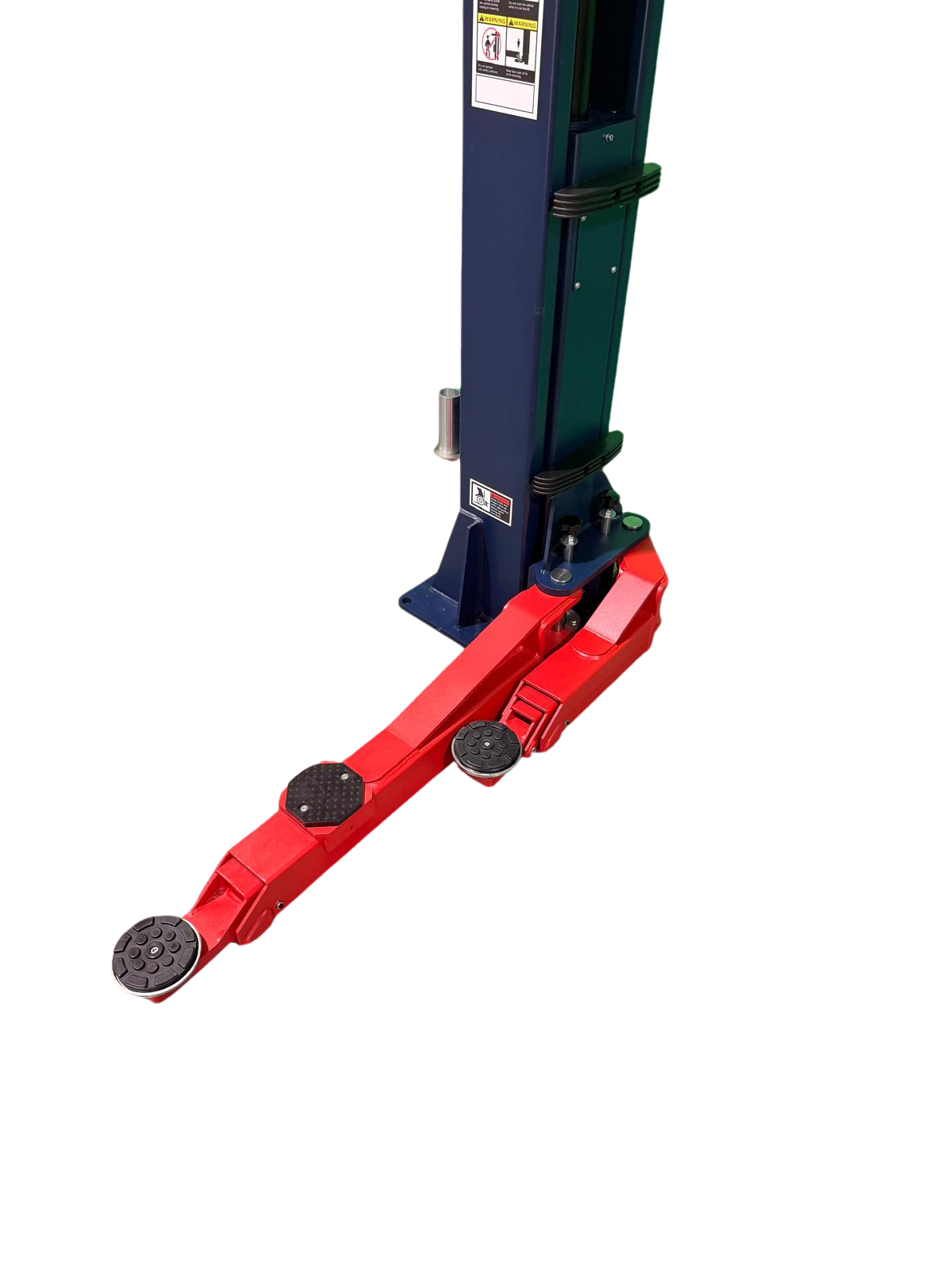

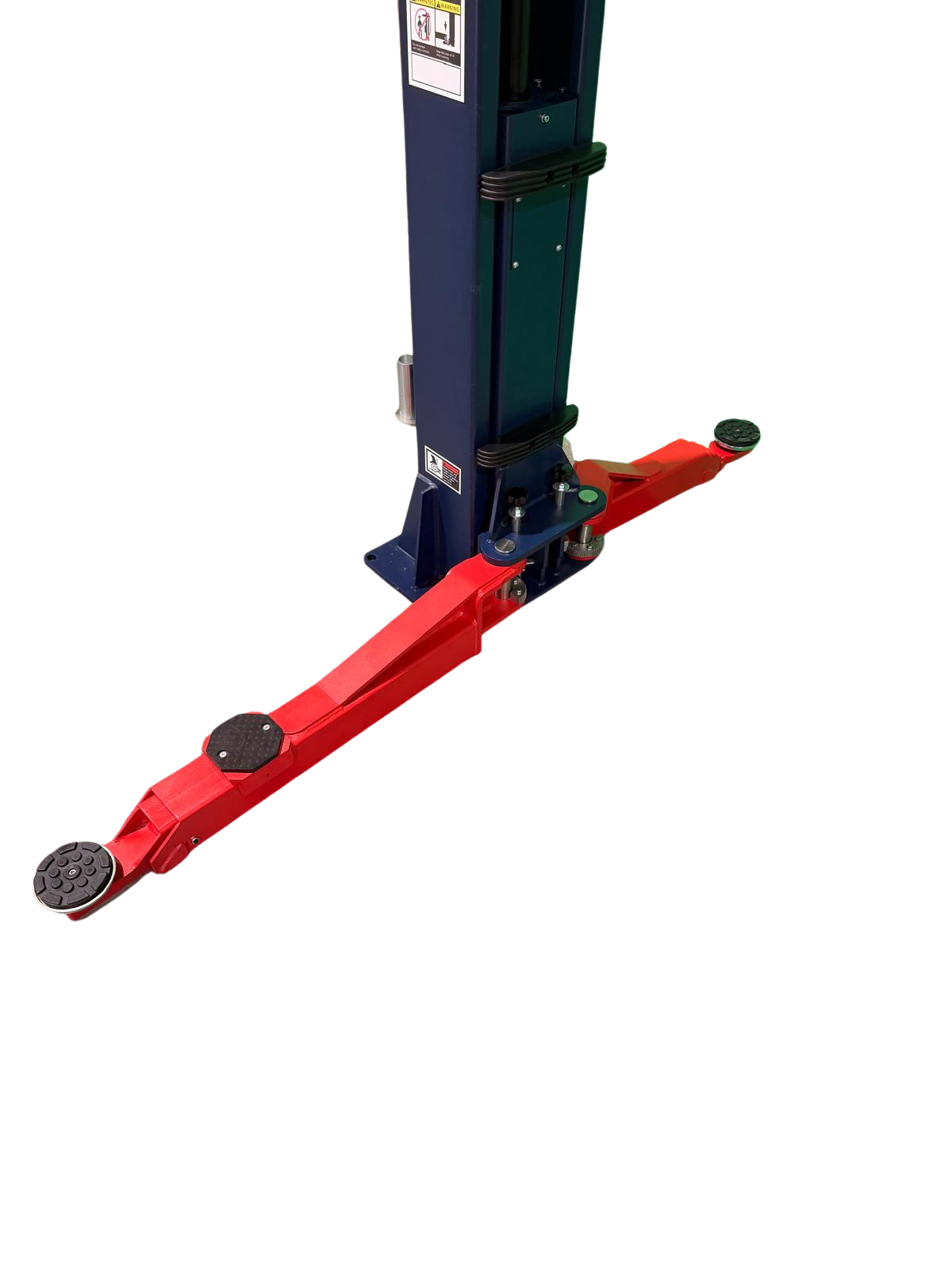

Front Arm Reach (min/max)
28"-40"

Rear Arm Reach (min/max)
42.5"-59.5"

Drop-in Pad Height
5" - 7.5"

Inside Column Width
117"

Motor
2.5HP

Voltage
208-230 volt / 1 phase

Rise
55 seconds

Max Load per Arm
2500lbs

Minimum Ceiling Height Req.
156"

Maximum Column Height
145"

Warranty Info
Delivery Info

Additional information

Weight 805.58004912 kg
